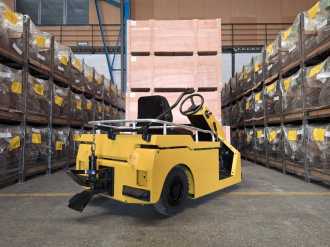

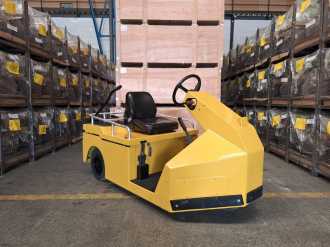

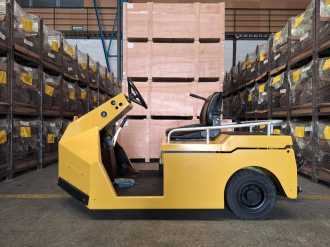

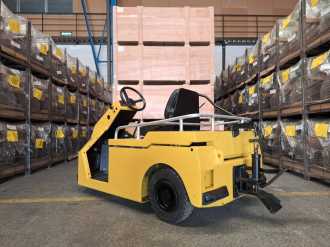

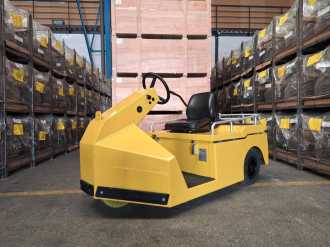

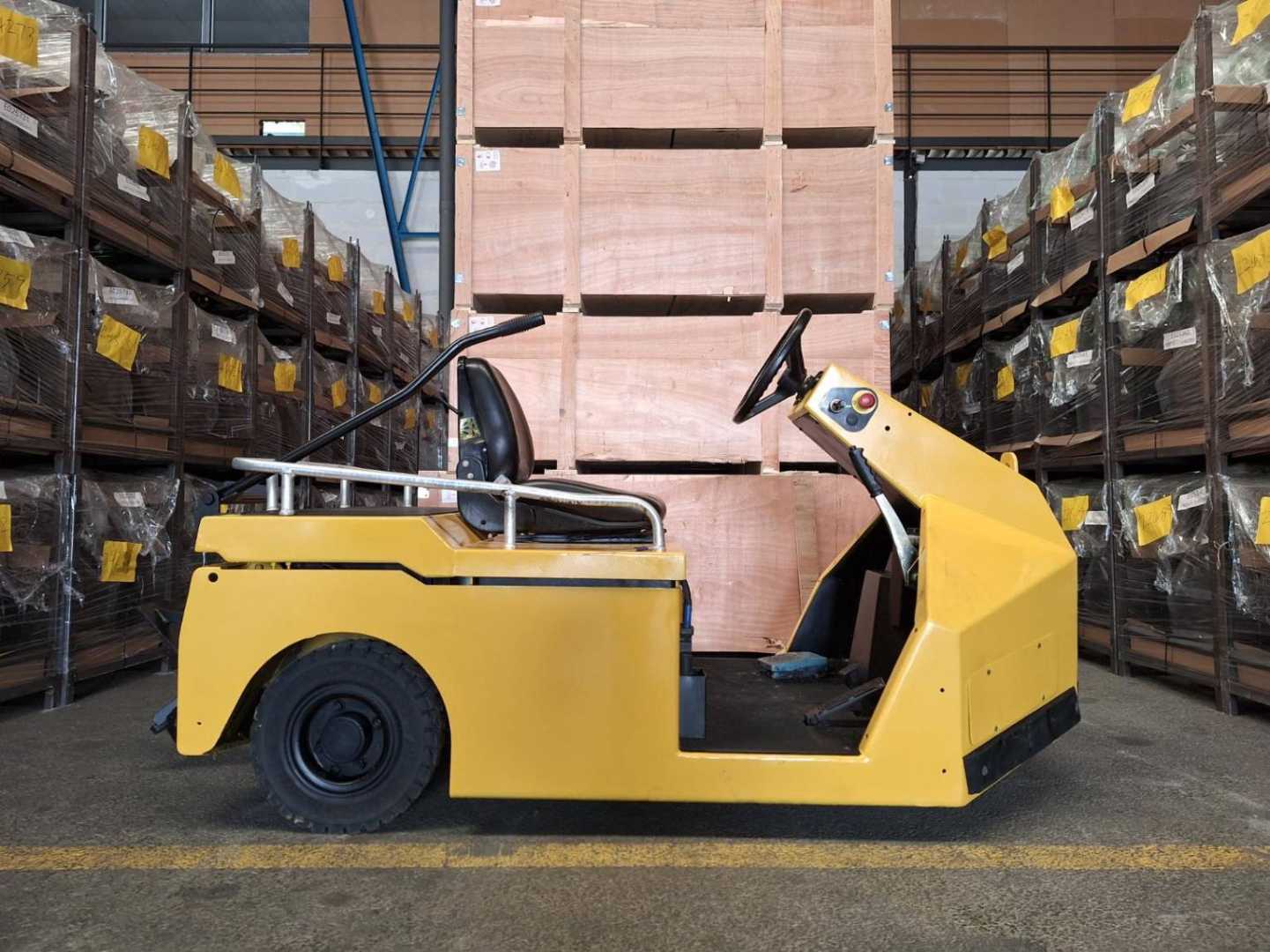

Charlatte TE206 Eléctrico Otros

Technical Specifications: Manufacturer: Charlatte Model: TE.206 Drive: Electric (battery) Operator Type: Seated Rated Capacity: 6-7 tons Rated Drawbar Pull: 1440 N Wheelbase: 1420 mm Weight: Service Weight: 1050-1165 Kg Axle Loading (Unladen): Front 450/600 Kg, Rear 420/745 Kg Tyres/Chassis: Tyres Type: Superelastic/Pneumatic Tyres Size (Front/Rear): 4.00 - 8 Number of Wheels (Front/Rear): 1/2 (driven) Rear Track: 880 mm Dimensions: Height of Overhead Guard: 1870 mm Seat Height: 792 mm Coupling Height: 270/335/395 mm Loading Height (Unladen): 680 mm Rear Bed Max Load: 150 Kg Length of Loading Surface: 395 mm Overhang (Front/Rear): 290/395 mm, 290/475 mm Width of Loading Surface: 920 mm Overall Length: 2210/2290 mm Overall Width: 1050 mm Ground Clearance: 110 mm Turning Radius: 1812 mm Internal Turning Radius: 340 mm Performance Data: Travel Speed (Laden/Unladen): 7.5/14 Km/h, 7/14 Km/h Travel Speed Backwards (Laden/Unladen): 6/7 Km/h, 5.6/7 Km/h Max Drawbar Pull (Laden/Unladen): 4000/4750 N Gradability (Laden/Unladen): 3.6/33%, 3.8/33% Service Brake: Hydraulic/Electric Electric Motor: Drive Motor Rating: 8 Kw Battery Voltage/Nominal Capacity: 48/320 V/Ah Battery Weight: 520 Kg Drive: Type of Drive Unit: AC Transmission Coupling: 3 positions tow hitch (E type) Wheel Drive: Mechanical Parking Brake: Handbrake (optional electric
