3 400 mm
2 500 kg
2026
na poptávku
Prodejce
MAZAKA MAKİNA SAN. VE TİC. LTD. ŞTİ
38350
Kayseri -

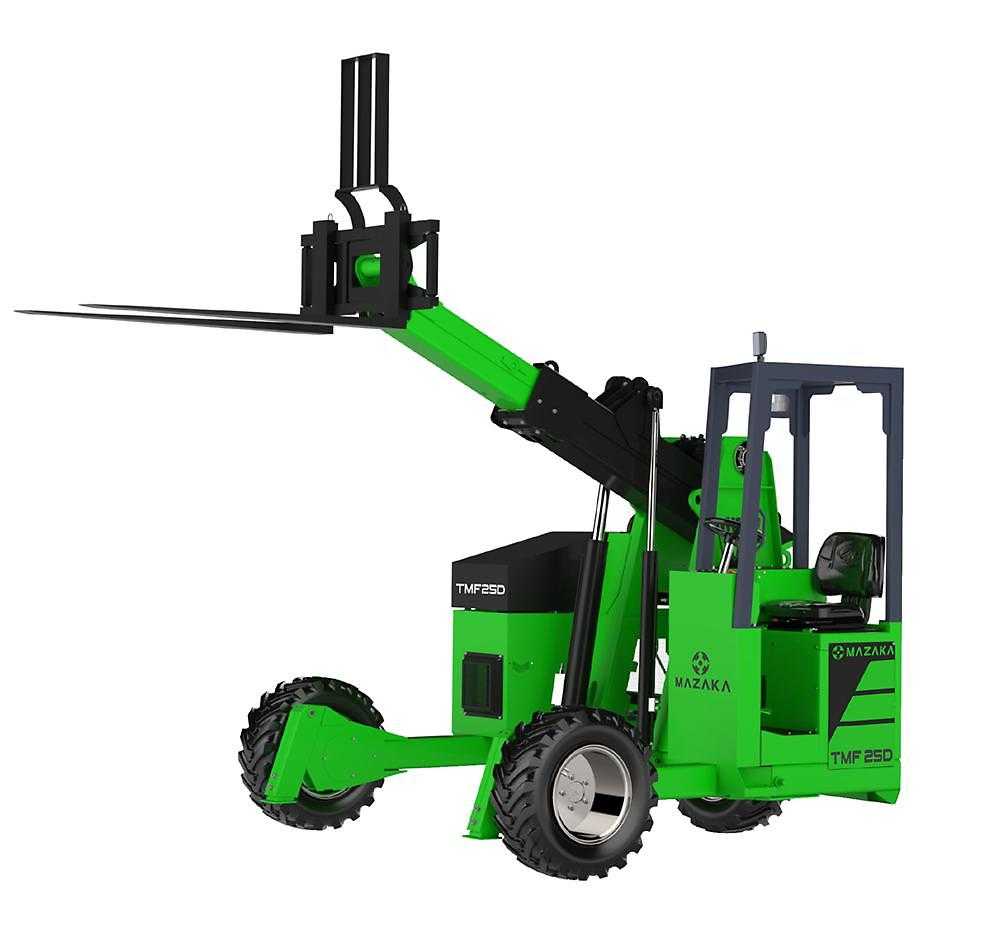

TR Mazaka TMF25D Truck Mounted Forklift Diesel Převozní vysokozdvižný vozík
| Data o vozidle | |
|---|---|
| Výrobce | Mazaka |
| Typ | TMF25D Truck Mounted Forklift |
| Typ vozíku | Převozní vysokozdvižný vozík |
| Druh pohonu | Diesel |
| Rok výroby | 2026 |
| Zvedací zařízení i | dvojitý sloup (duplex) |
| Volný zdvih (mm) | 100 |
| Cena | na poptávku |
| Warranty (months) | 12 |
| Číslo produktu (nabízející) | |
| Supralift Číslo produktu | 13022790E |
| Výrobní číslo |
| Nosnost, výška zdvihu, rozměry | |
|---|---|
| Nosnost (kg) | 2500 |
| Výška zdvihu (mm) | 3400 |
| Težiště břemene (mm) | 600 |
| výška zvedacího zařízení (mm) | 2296 |
| Délka vidlí (mm) | 1200 |
| Vlastní hmotnost (kg) | 2850 |
| Motor a pohon | |
|---|---|
| Převodovka | Hydrostatický převod |
| Výrobce spalovacího motoru | YANMAR |
| Výkon spalovacího motoru (kW) | 35 |
Příslušenství

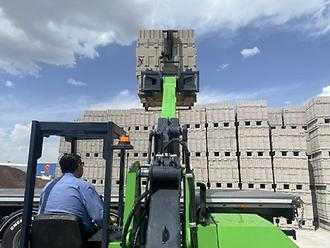

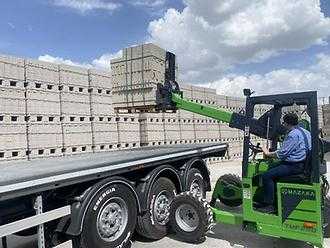

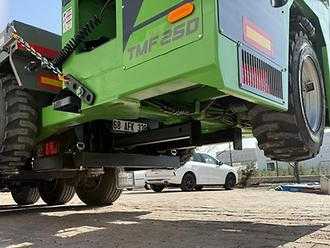

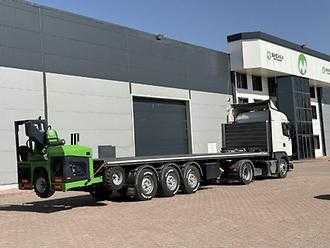

TMF25D LET’S GET TO KNOW IT BETTER Truck-mounted forklifts are designed to travel with the delivery vehicle, providing on-the-go material handling without the need for external lifting equipment. Their compact andlightweight design ensures easy transportation, allowing operators to unload goodsanywhere, even in remote or hard-to-reach locations. With all-terrain capabilities, they canoperate on uneven surfaces, construction sites, or tight urban spaces, making deliveriesmore flexible and efficien Technical Data Manufacturer: MAZAKA Power: 35 kW Rated Speed: 2200 rpm Fuel Tank: 30 l DPF Filter: Standart on Stage 5 Engine Weight Service Weight 2850 kg Weight on front axle (laden) / rear axle (laden): 1290 kg Weight on front axle (unladen) / rear axle (unladen): 1900 kg Wheels Tires Type Pneumatic Front Wheel Dimensions 10x16, 5 IND 10 Rear Wheel Dimensions 10x16, 5 IND 10 Number of Front / Rear Wheels 2 / 1 Hydraulic Drive Wheels (Front / Rear) 2 / 1 Front Track Width 2143 mm Performance Travel Speed (laden / unladen) 10.60 – 10.70 km/h Lifting Speed (laden / unladen) 0.26 / 0.24 m/s Lowering Speed (laden / unladen) 0.38 / 0.24 m/s Gradeability (laden / unladen) 31% / 32% Acceleration Time (laden / unladen) 4.10 / 2.60 s Service Brake Hydraulic Brakes Transmission Type Hydrostatic Dimensions Mast / fork carriage tilt forward / backward α/β – 12° / 14° Max. lifting height h3 – 3400 mm Height of cabin h6 – 2296 mm Seat height from ground h7 – 1149 mm Overall length l1 – 3209 mm Overall width b1 – 2406 mm Ground clearance m1 – 300 mm Forks thickness/ width/ length t/w/l – 40 x 122 x 1200 mm Fork carriage ISO 2328 (class/form) A/B 2A Fork carriage width b3 – 1298 mm Distance between Fork b5 – 1278 mm Distance between wheel arms b4 – 1603 mm Maximum extension reach l4 – 1316 mm Aisle width for 800 x 1200 pallet lengthways Ast – 3854 mm Turning radius Wa – 2700 mm Engine Engine Brand / Model Yanmar Stage III/4TNV88 - Yanmar Stage V/4TNV88C Miscellaneous Hydraulic Working Pressure for Attachments 180 bar Oil Flow Rate for Attachments 44 l/min Noise Level for Driver 84 dB
Obutí
Pneumatic tires (air-filled)
